Ledson Nano Reverse Light 30W

Nano reverse light from Ledson – the ultimate solution for powerful lighting in an ultra-compact package. At only 17 mm in height, Nano is remarkably discreet when mounted on your vehicle, yet it delivers exceptional strength in its 140° wide beam pattern light output. Designed to provide superior visibility behind the vehicle, Ledson Nano ensures a clear and bright view while reversing.

E-marked and approved as a reverse light (ECE R148), this super compact light combines modern aesthetics with outstanding performance. Its sleek and contemporary design seamlessly integrates with your vehicle, making it both functional and stylish.

✓ Extremely low profile with a height of 17 mm
✓ Approved as a reverse light, ECE R23
✓ 140° wide beam pattern

Specifications:

• E-marked: ECE R148 (previous R23) – approved as reverse light
• Range: 31m (1 lux)
• Lumen: 2800 lumens (actual 1750)
• Light distribution: 140° wide beam pattern
• Color temperature: 5000K
• Power: 30W (6 x 5W LED)
• IP rating: IP68 (water and dust proof)
• Electronic thermal management
• Voltage: 9-36V
• 2A at 12V and 1A at 24V
• EMC certified: ECE R10

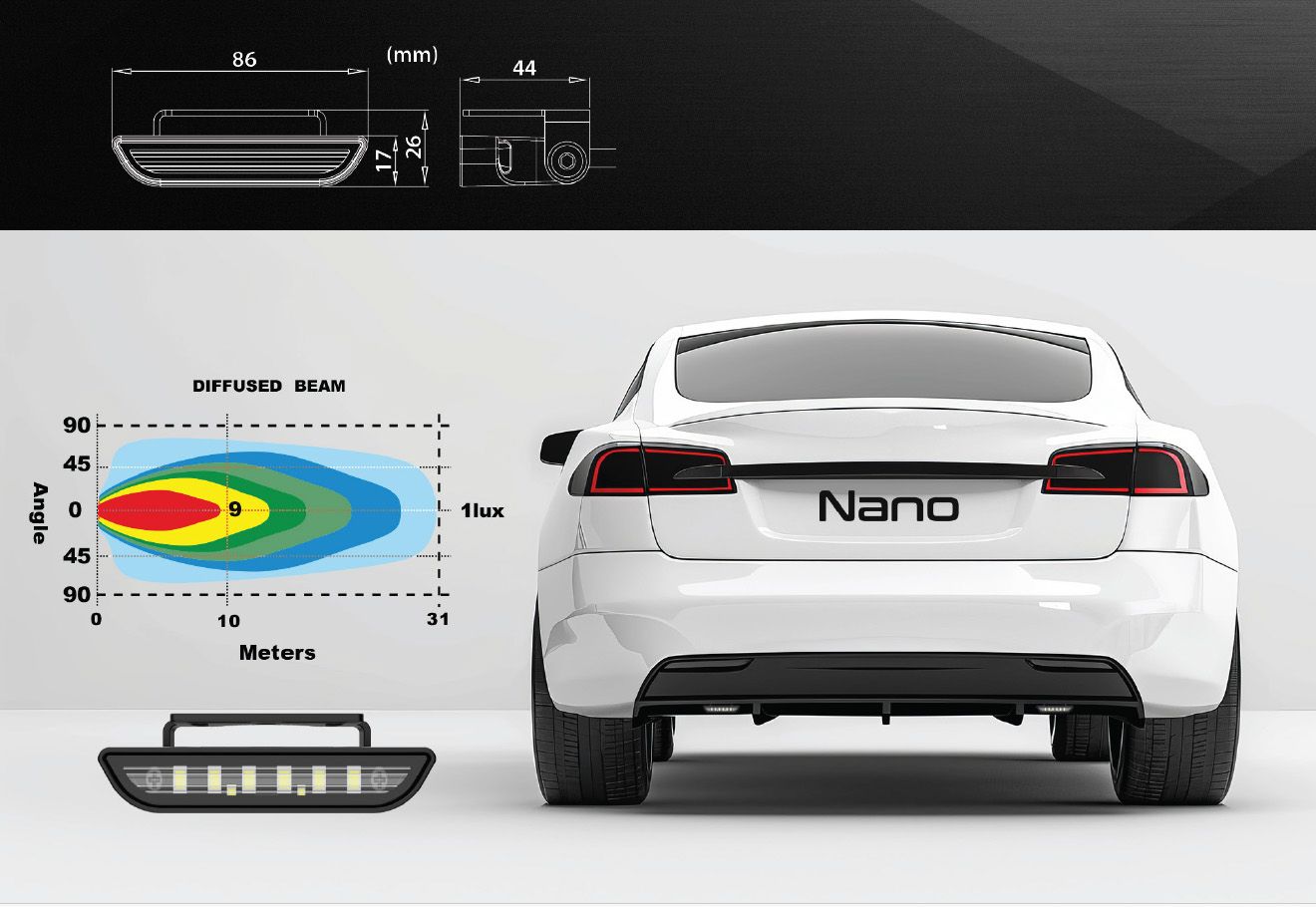

Dimensions:

• Width: 86 mm
• Height: 17 mm (26 mm with bracket)
• Depth: 44 mm
• 30 cm cable with 2 pole DT connector

Note: The DT connector should not be cut, as this increases the risk of moisture damage and voids the warranty. A DT connector (male) with a splice is included with the product.
