Ledson Orion 10+ LED 100W Spotlight with White & Amber Position Light


£155.00 Exc. VAT


This product is suitable for

Any vehicle

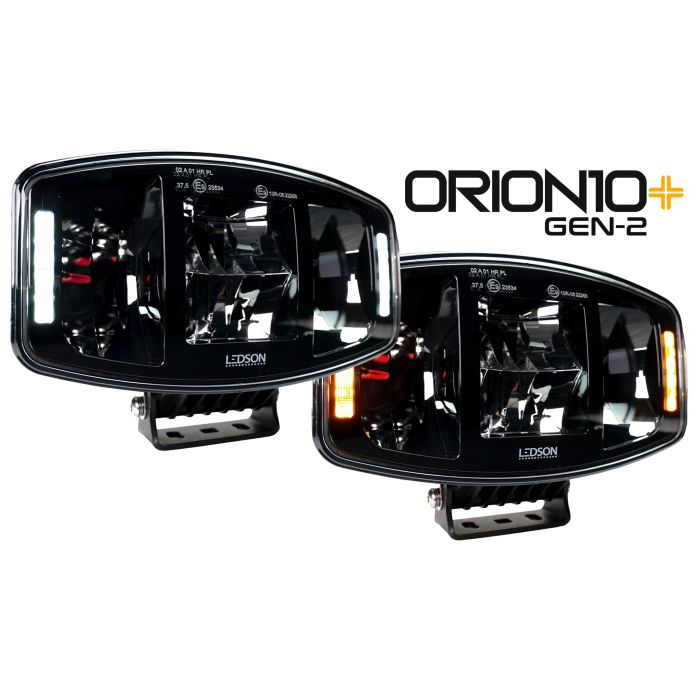

With its futuristic design, it’s hard not to be impressed by the Ledson Orion10+

8500 lumens and 1 lux brightness at 450 meters and 0.25 lux brightness at 850 meters (per auxiliary light) gives you the visibility ahead on the road that you need.

The auxiliary light is also equipped with a stylish position light that can be set between xenon white and amber: you choose which one you want.


  • With position light, yellow-orange or xenon white (use the color you desire)
  • Driving beam light that mimics and reinforces the vehicle’s regular light
  • E-marked E9 (Ref. 37,5), ECE R112 / R10 / R7 (white position light)
  • Range: 850 m (0,25 lux), 425 m (1 lux)
  • EMC secured (does not disrupt the radio)
  • 10000 lumen (raw), 8500 lumen (effective)
  • Cold white light (6000 K)
  • ETM (Electronic Thermal Management) – adjusts the diode’s strength depending on how hot they are for optimum life
  • Side reflecting optical system
  • Pressure relief membrane
  • Aluminum alloy heat-sink
  • Adjustable bracket in stainless steel
  • Lexan polycarbonate front cover
  • 36 month warranty

Technical data:

100W (4 x 25W LED)
IP69K (water/dust-proof)
DT connector / DT-adapter 2-4 pin supplied with the product
Voltage 9-36 V
Load 6,8 A @ 12 V and 3,4 A @ 24 V

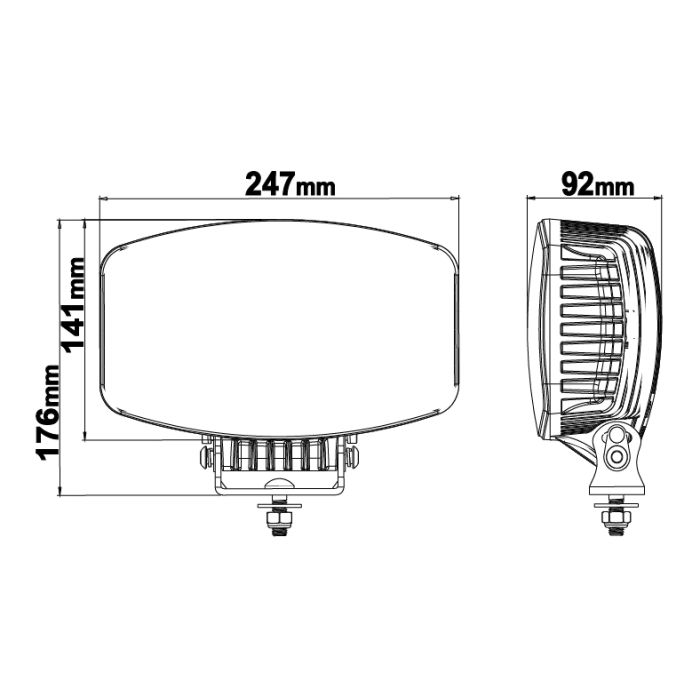

Measurement & weight:

Width: 247 mm
Height: 141 mm (176 mm incl mounting)
Depth: 92 mm
Weight: 1,82 kg


Ledson Orion10+ LED auxiliary light
Bracket, bolts and screws to fasten the light
DT connector (4-pole)
Installation instructions

Cable installation (detailed installation instructions included):

Red: Light (+)
Black: Light / Position light (- ground)
White: Position light (+)
NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and invalidates the warranty.
