Ledson Pollux9+ Gen2 LED Spotlight with Strobe Function

Pollux9+ Strobe – an auxiliary light with extra everything!

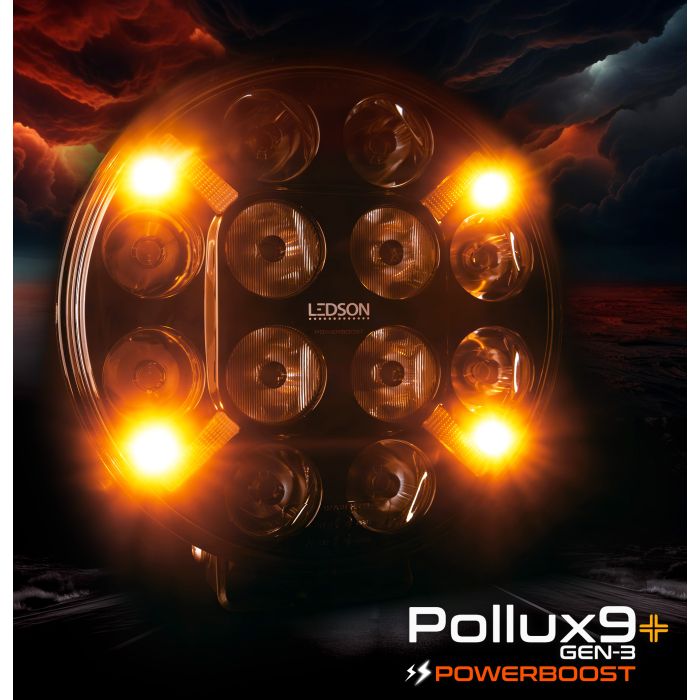

Pollux9+ Strobe is a further development of Ledson’s immensely popular Pollux9+ Gen 2. In addition to a wide and long light pattern with the Driving beam from the TIR reflectors with 480 meters at 1 Lux, it also has selectable position light (white or orange), stable attachment, electronic temperature optimization, Goretex pressure equalization membrane and all that which distinguishes the standard Pollux9+. The Pollux9+ Strobe also has an ECE R65 approved strobe light. This warning light consists of four powerful LEDs that can be set in five different flash patterns.

TIR reflectors

TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears “unfocused” from the light without making any real use) is minimized. In summary, you get more efficient light on the road and take full advantage of every LED on the auxiliary light with the TIR reflectors.

Specifications:

• Five different warning light patterns, one that is ECE R65 approved
• Synchronizable with each other
• E marked (E8, ref. 37,5), ECE R112 / R10 / R7 (white position light)
• EMC secured (does not disturb the radio)

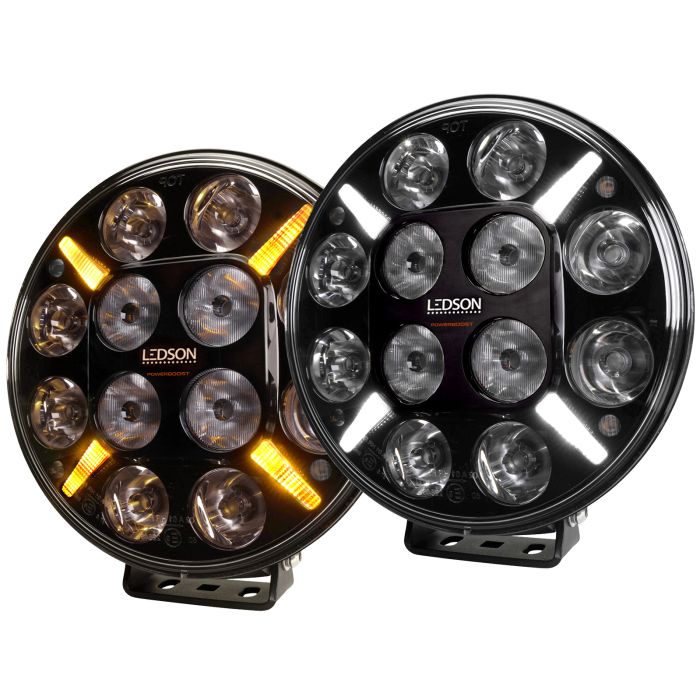

• With position light (4 LEDs) yellow-orange or xenon white (connect the color you want)
• Driving beam light pattern with range: 960 m (0.25 lux), 480 m (1 lux)
• Spot beam light pattern with range: 1148 m (0,25 lux), 574 m (1 lux)
• 12000 lumens (theoretical), 9600 lumens (actual)
• Cold White Light (6500 K)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36 month warranty

Technical data:

• 120 W (12 x 10 W Cree XM-L2 LED)
• 4 pcs LED for strobe light
• Nominal power 92,4 W
• IP68 (water/dust proof)
• 6 pole DT connector (2-pin adapter included)
• Electronic heat management
• Voltage 9-36 V
• Load 7,7 A @ 12 V and 3,6 A @ 24 V

Measurement & weight:

• Width: 218 mm
• Height: 234,5 mm (incl bracket)
• Depth: 68,5 mm
• Weight: 1,9 kg
• Cable length: 650 mm

Supplied:

• Pollux9+ Strobe Ledson LED auxiliary light 9″ with strobe function
• Bolts and screws for attaching the auxiliary light with either one or two attachment points
• DT connector (6 pole, supplied with 2 pole adapter)
• Installation instructions

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light/ Position light (- ground)
• Grey: Position light (+) white light
• Yellow: Position light (+) orange light
• Green: Strobe light (+)
• Blue: Strobe light switch of pattern / synchronization

Strobe pattern synchronization: Connect the blue wires of two or more auxiliary lights, then momentarily connect these to the positive terminal for 3 seconds to reset the strobe frequency on all connected lights, then all flash patterns are shifted.
